| Product |
Technical |
Model No. |
ND
mm |
WT |
A |
H |
L |
D |
d |
| Coupler : To join together two length of plain pipe, use the new pivot mounted clips. The join bracket is a true half-round section fitted with deep Rubber seals. Must be screwed direct to fascia or anchored by a suitable rafter bracket. |
 |
 |
COU14R |
140 |
2.35 |
164.5 |
80.1 |
114.5 |
142.4 |
- |
| COU18R |
180 |
2.80 |
121.4 |
102.4 |
160.6 |
178.7 |
- |
| COU25R |
250 |
2.85 |
285.3 |
142.6 |
205.3 |
253.5 |
- |
| End Cap : To cap open end of pipe through half-round section fitted with rubber foam seal. |
 |
 |
ECP14R |
140 |
2.75 |
163.6 |
80.4 |
47.0 |
113.75 |
- |
| ECP18R |
180 |
2.90 |
207.5 |
101.0 |
65.0 |
153.50 |
- |
| ECP25R |
250 |
3.05 |
207.5 |
144.0 |
84.5 |
197.50 |
- |
| Tee : To connect pipe to rainwater pipe via a fitting through half round section, fitted with deep rubber seals and outlet. Must be screwed direct to fascia or anchored by a suitable rafter bracket. |
 |
 |
TEE14R |
140 |
2.30 |
- |
132.5 |
229.4 |
140.5 |
75.0 |
| TEE18R |
180 |
2.70 |
- |
190.0 |
333.0 |
180.0 |
109.6 |
| TEE25R |
250 |
3.00 |
- |
238.4 |
415.0 |
249.3 |
159.1 |
| Tee with End : Open end of pipe and provide for connection to rainwater pipe via a fitting through half-round section fitted with deep rubber seal. |
 |
 |
TWE14R |
140 |
2.70 |
147.3 |
133.7 |
232.0 |
141.2 |
75.0 |
| TWE18R |
180 |
2.55 |
187.2 |
190.8 |
327.0 |
179.5 |
109.2 |
| TWE25R |
250 |
3.10 |
257.8 |
241.5 |
417.2 |
247.5 |
161.2 |
| Elbow with outlet : To provide for change of direction in gutter, through half-round sections, filled with deep rubber seals. |
 |
 |
EWO14R |
140 |
2.55 |
- |
137.7 |
345.0 |
140.0 |
74.8 |
| EWO18R |
180 |
2.80 |
- |
155.1 |
455.0 |
181.0 |
110.0 |
| EWO25R |
250 |
3.02 |
- |
217.7 |
615.0 |
247.0 |
158.8 |
| Elbow without outlet : |
 |
|
EWWO14R |
140 |
2.55 |
- |
82.0 |
345.0 |
140.0 |
- |
| EWWO18R |
180 |
2.80 |
- |
105.0 |
445.0 |
181.0 |
- |
| EWWO25R |
250 |
|
|
|
|
|
|
| Pipe Clamp : New support brackets for pipe and fittings. Screw fix to fascia or bolt to rafter brackets. |
 |
 |
PCP14R |
140 |
1.95 |
20.1 |
105.5 |
153.3 |
- |
- |
| PCP18R |
180 |
2.30 |
30.0 |
137.2 |
196.9 |
- |
- |
| PCP25R |
250 |
3.65 |
37.2 |
189.6 |
272.8 |
- |
- |
| Pipe : To dry joint to all pipe fittings. Supplied in plain ended lengths. |
 |
 |
HRP14R |
140 |
1.85 |
129.0 |
72.7 |
3010.0 |
122.8 |
- |
| HRP18R |
180 |
2.60 |
164.0 |
92.2 |
3010.0 |
158.0 |
- |
| HRP25R |
250 |
3.80 |
230.0 |
124.0 |
3010.0 |
224.0 |
- |
| Top Brackets : To fix pipe support brackets, open ends of rafters must be screwed to rafter. Provide full support for Fittings with twoscrew fixings. |
 |
 |
TBK14R |
140 |
3.15 |
144.0 |
235.0 |
250.0 |
20.2 |
- |
| TBK18R |
180 |
3.30 |
143.6 |
251.0 |
273.0 |
29.0 |
- |
| TBK25R |
250 |
2.90 |
176.0 |
423.0 |
404.0 |
37.0 |
- |
| Side Brackets : To fix pipe support brackets, open ends of rafters must be screwed to rafter. Allows vertical adjustment of the pipe support bracket. |
 |
 |
SBK14R |
140 |
3.05 |
113.6 |
236.6 |
184.0 |
19.2 |
- |
| SBK18R |
180 |
2.85 |
144.5 |
245.3 |
240.0 |
27.5 |
- |
| SBK25R |
250 |
3.10 |
180.0 |
415.0 |
330.0 |
37.6 |
- |

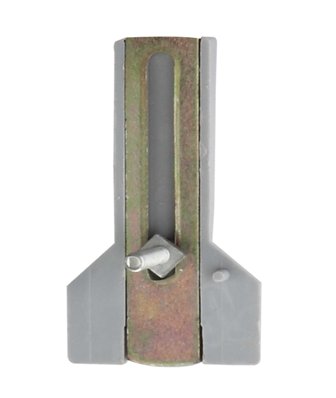

| Clip (Bracket Holder) : |
 |
|
BRK14R |
140 |
3.2 |
- |
101 |
51 |
- |
- |
| BRK18R |
180 |
2.8 |
- |
128 |
72 |
- |
- |
| BRK25R |
250 |
5.4
|
- |
180 |
91 |
- |
- |
| Rubber Gasket : |
 |
|
RGS14R |
140 |
9.00 |
226.0 |
15.0 |
- |
- |
- |
| RGS18R |
180 |
11.00 |
283.0 |
21.5 |
- |
- |
- |
| RGS25R |
250 |
14.00 |
385.0 |
33.2 |
- |
- |
- |

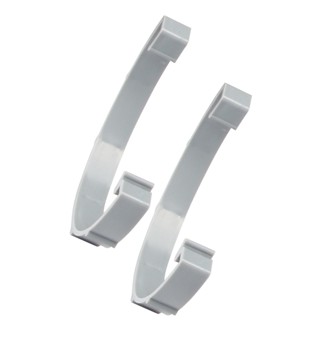

| Lock : |
 |
|
LOC14R |
140 |
2.5 |
164.5 |
89.7 |
- |
- |
- |
| LOC18R |
180 |
3.0 |
208.0 |
110.5 |
- |
- |
- |
| LOC25R |
250 |
3.5 |
279.0 |
154.9 |
- |
- |
- |
