Traps

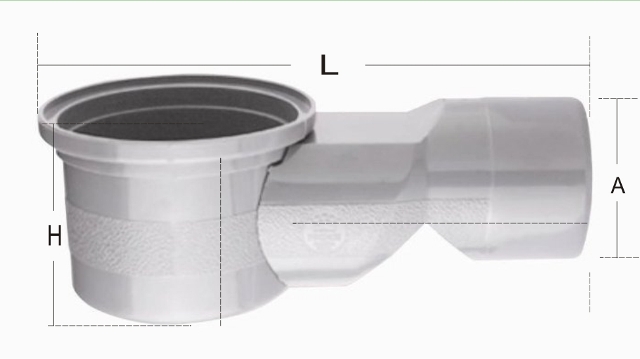

Nahani Trap without Inlet

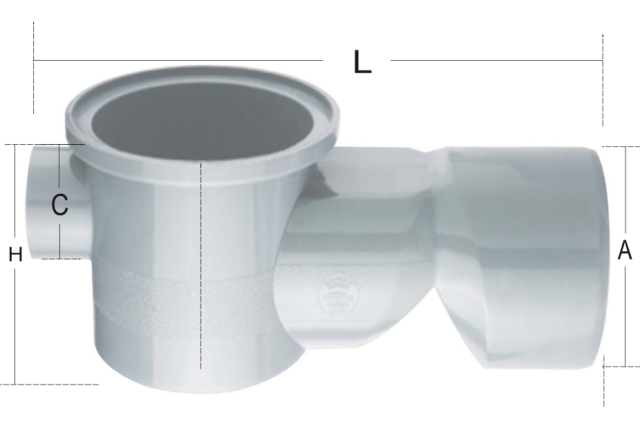

Nahani Trap with Inlet

Floor Trap
Seal H L A
3".10 88 257 75
3".10 88 260 90
3".10 88 260 95
3".10 88 260 116
3".10 88 236 63
Seal H C L A
4".10 97 40 271 75
4".10 97 40 273 90
Seal A D d L H
5".50 117 75 50 208 127
4".23 117 75 50 208 100

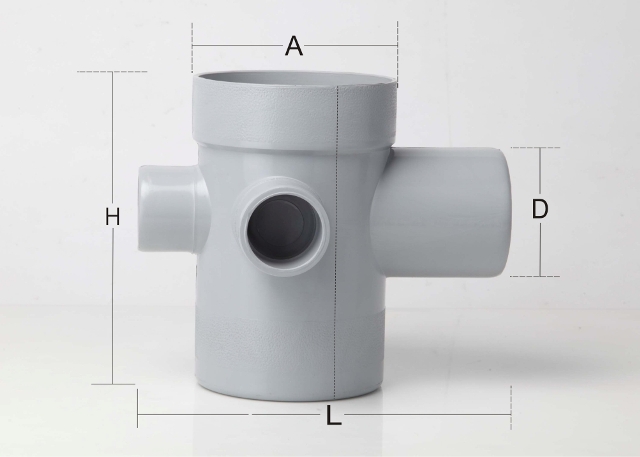

Floor Trap - "7"

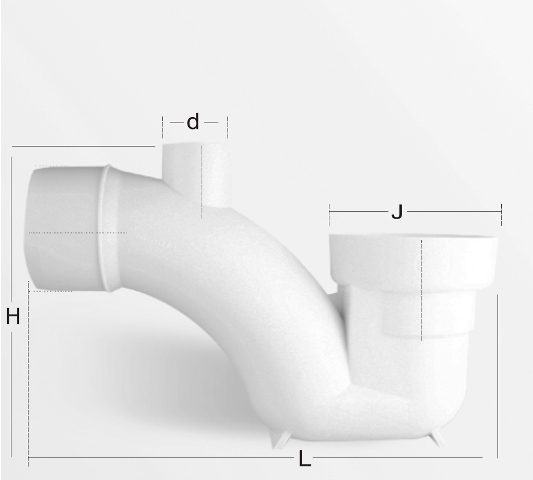

P-Trap with Air Vent (Big)

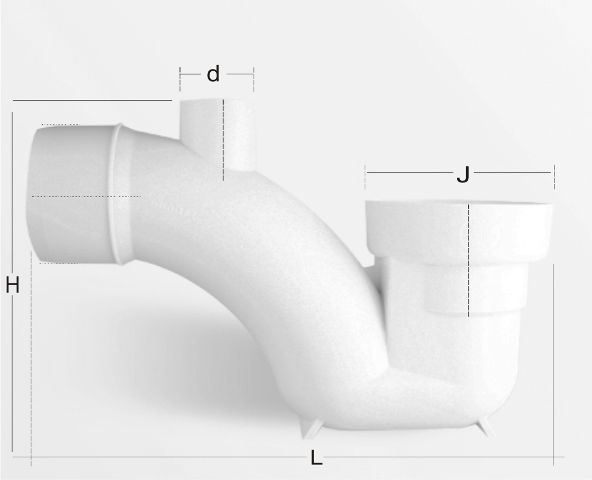

P-Trap with Ait Vent (Small)
Seal A D d L H
50 116 75 50 208 177
ND WT H L d J
125 3.2 263 382 56 141
ND WT H L J
110 206 199 229 130

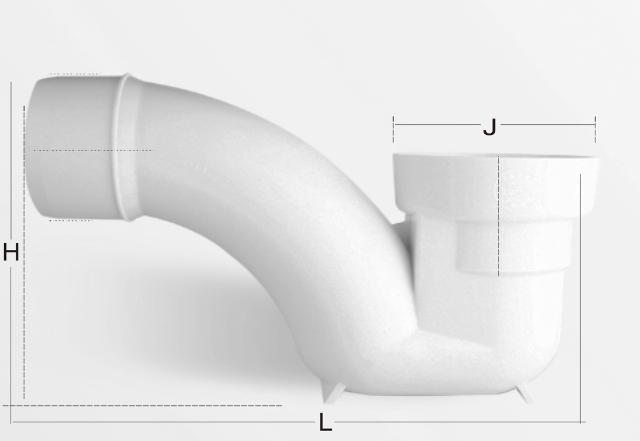

P-Trap without Air Vent (Big)

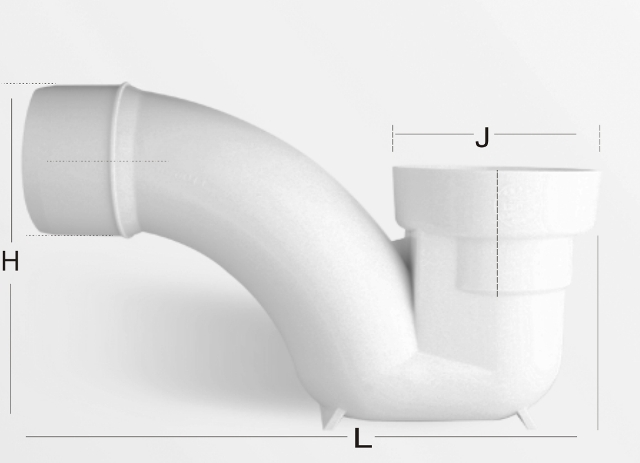

P-Trap without Air Vent (Small)

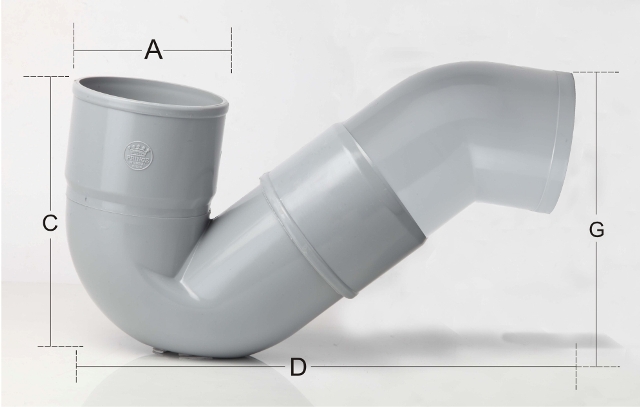

P-Trap 1010
ND WT H L J
125 3.2 246 382 141
ND WT H L d J
110 2.7 199 229 55 130
A C D G
110 196 313 211
P-Trap 1025

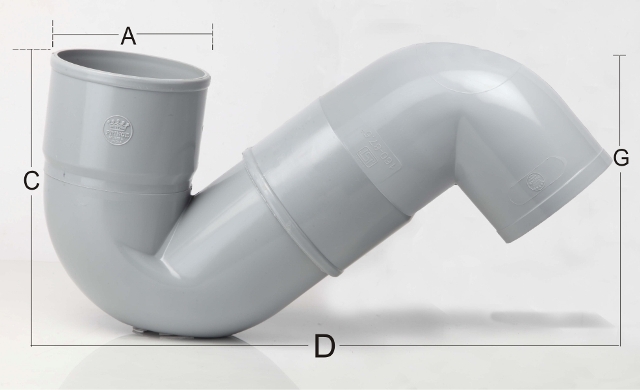

Q-Trap 1010

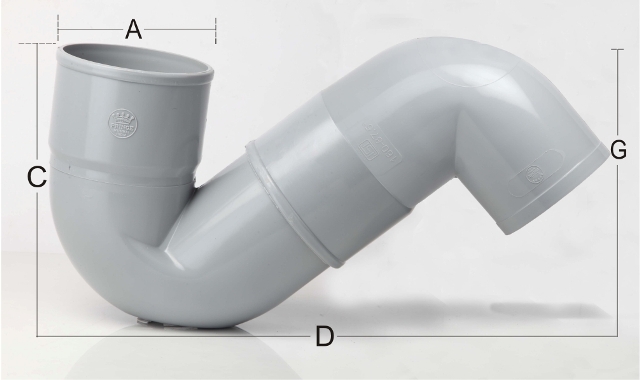

Q-Trap 1025
A C D G
125 196 313 211
A C D G
110 196 412 226
A C D G
125 196 412 226
S-Trap 1010

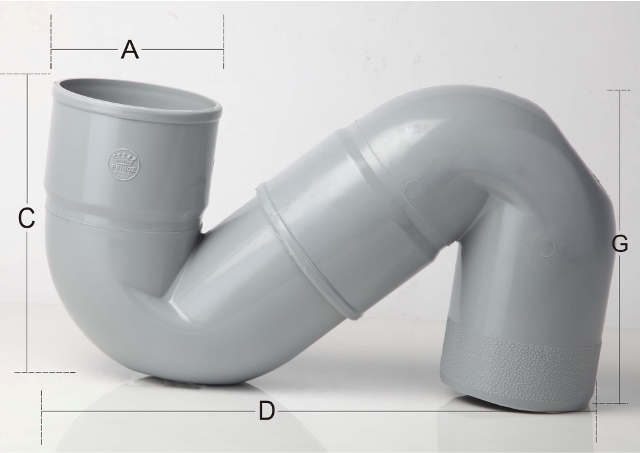

S-Trap 1025
Mini Trap
A C D G
110 196 382 220
A C D G
125 196 382 220
D   WT   H
98.0   2.0   69

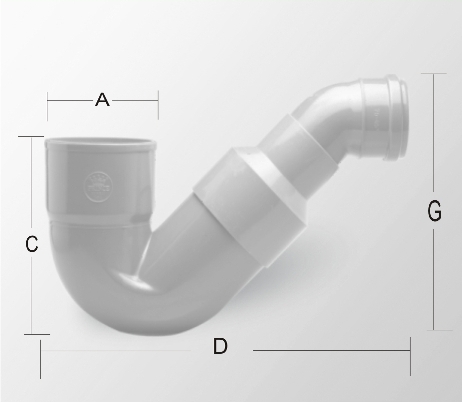

B M Trap

A C D G
120 19 364 244
All dimensions are in millimetres.

ND = Nominal Diameter.
WT = Wall Thickness.
P = Solvent Socketing.
F = Fabricated.
Ft = Feet.
M = Meter
