Product Specifications

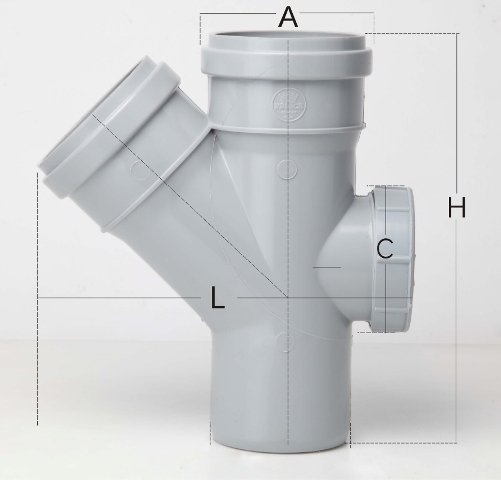

Single 'Y' with Door

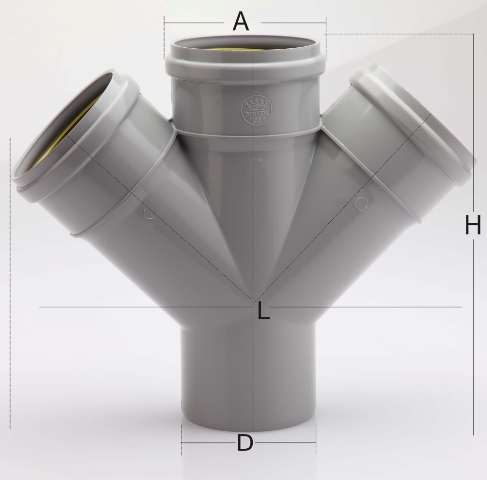

Double 'Y'

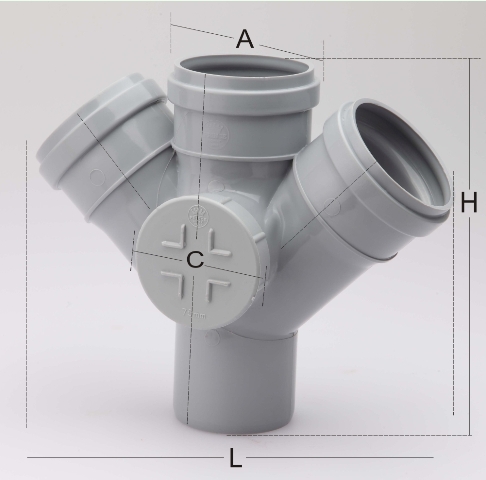

Double 'Y' with Door
ND WT A H L
40 2.85 55 153 112
50 1.9 65 165 130
75 3.5 91 218 176
90 3.5 107 275 224
110 3.5 127 300 251
160 4.15 181 407 333
ND WT A H L
75 3.6 91 219 265
90 3.5 107 274 328
110 3.5 127 303 377
ND WT A H L C
75 3.5 91 217 265 81
90 3.5 107 278 328 95
110 3.7 127 302 378 108
1

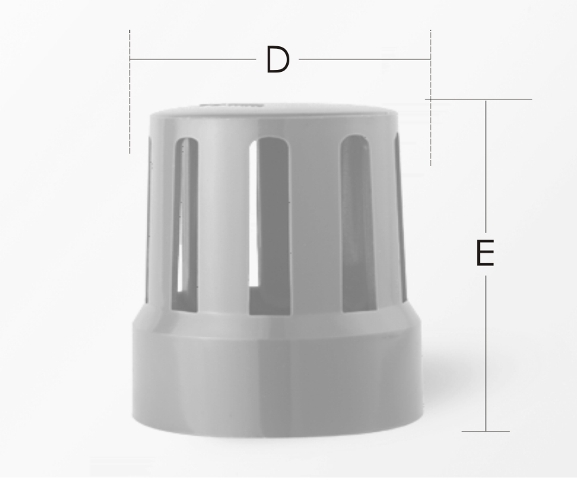

Vent Cowl

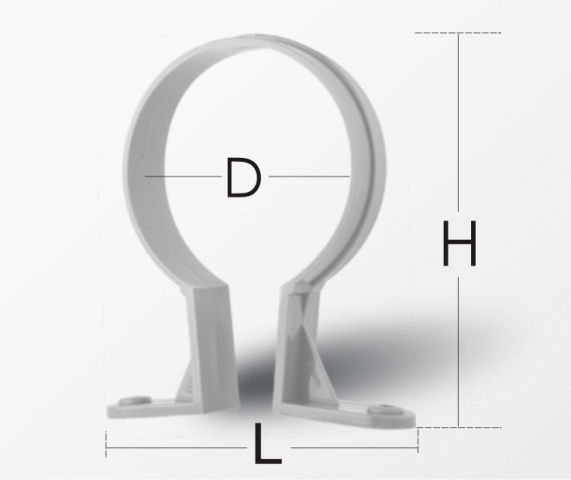

Pipe Clip

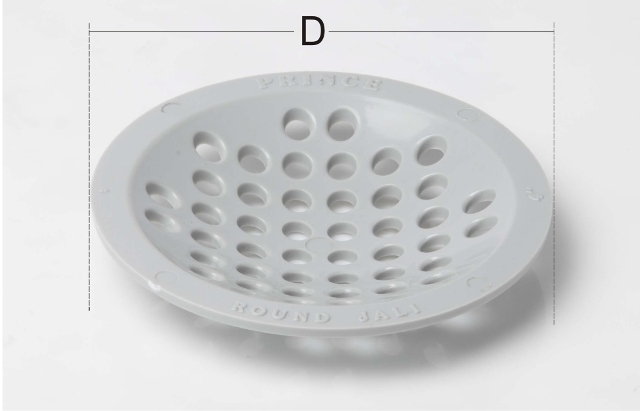

Round Jali Holes

ND WT   H
63 3.4   89
75 3.5   99
90 3.5   103
110 3.1   107
ND WT H L
40 5.3 65 69
50 3.1 78 89
63 3.8 104 111
75 2.9 105 122
90 3.9 132 138
110 4.4 148 166
160 5.4 198 220
ND WT
4" 3.3

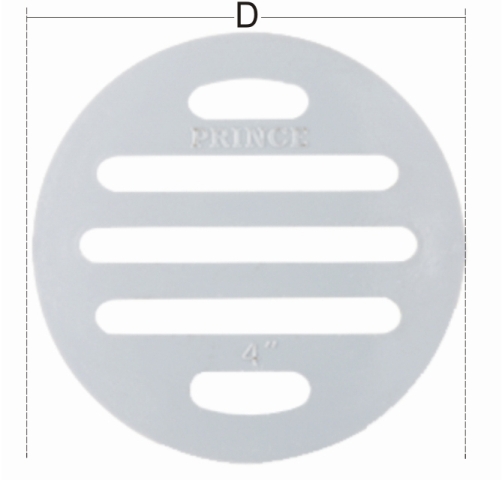

Round Jali Strips

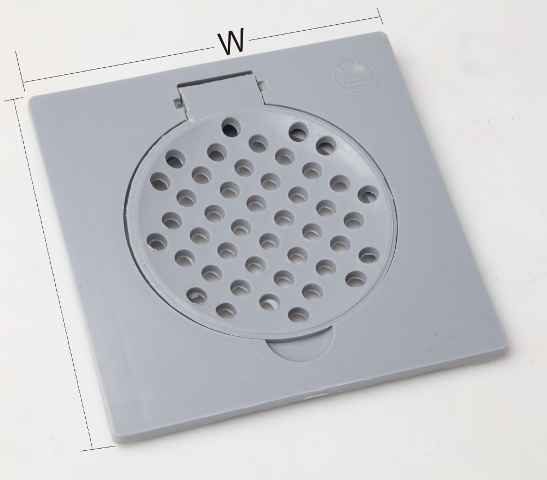

Square Jali Holes

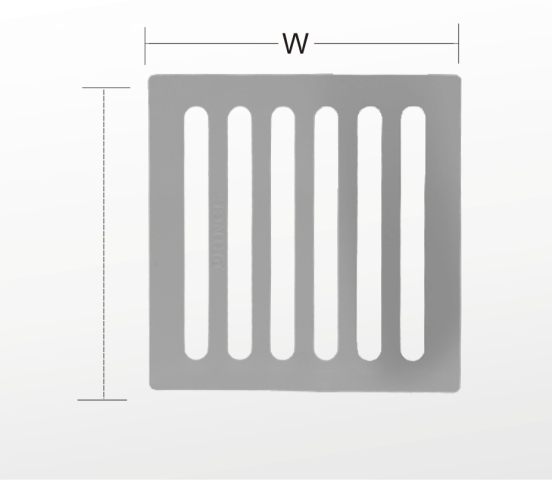

Square Jali Strips

ND     WT
3"     5
4"     5
5"     5.5
H X H WT
6" X 6" 4
H X H   WT
4"x4"   5
5"x5"   5.5
6" X 6"   5.5



Reducer

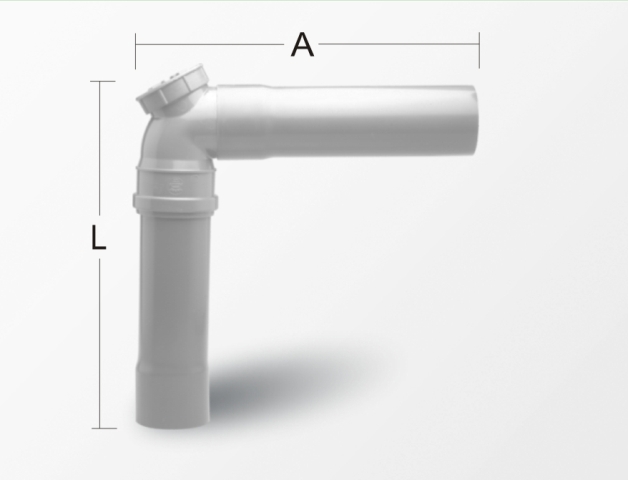

Long Arm Bend with Door

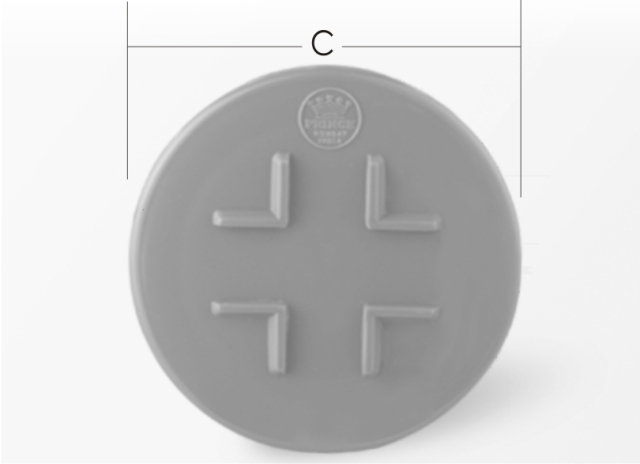

Door Cap

ND WT D d L
40x32 2.8 40 45 74
50x40 2.8 50 55 116
90x40 2.7 90 54 128
90x50 2.7 90 65 125
90x75 3.4  -  - 139
110x75 3.4  -  - 154
110x90 3.4  -  - 158
ND WT L1 L2 C
75PF 1.9 325 325 81
90PF 2.0 419 315 95
110PF 2.5 426 300 106

ND   C   H
50   46   16
63   67   23
75   81   23
90   95   26
110   108   26

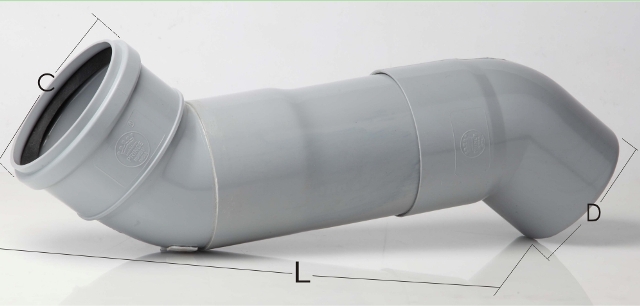

Offset

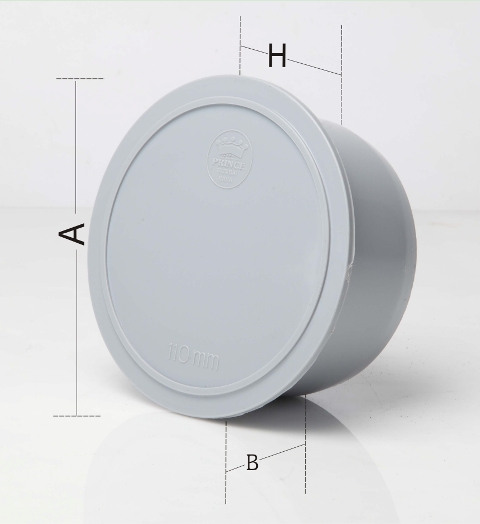

Socket Plug

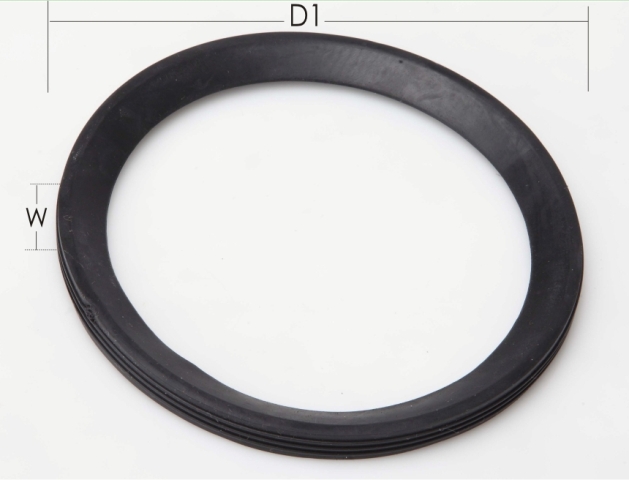

Rubber Ring

ND WT H L
75(3") 3.4 220 162
(6") 3.4 292 239
(9") 3.4 358 308
90(3") 3.3 281 197
(6") 3.4 353 265
(9") 3.5 407 315
110(3") 3.4 287 209
(6") 3.4 358 286
(9") 3.5 409 342
ND WT A H B
75 3.2 96 50 45
90 3.1 110 55 50
110 3.2 130 59 55
ND D1   W
40 49   8
50 63   9
75 86   9
90 102   10
110 121   10
160 175   13.5

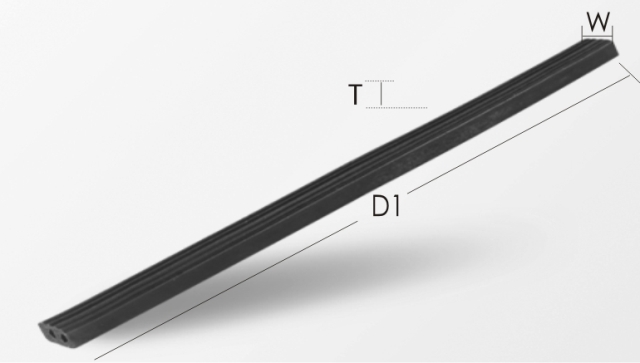

Door Gasket

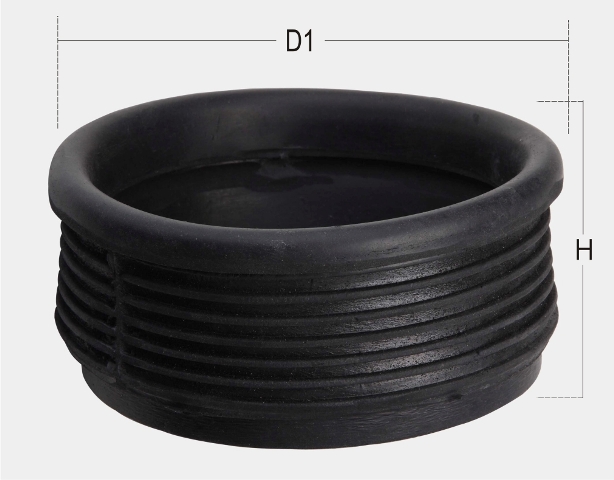

Lip Ring

ND D1 T W
50 39.5 3.5 1.85
63 55.5 2.85 2.75
75 68 3.4 2.7
90 81 3.2 2.7
110 96 2.9 2.7
ND
D1
H
110
120
29
125
132
58



All dimensions are in millimetres.

ND = Nominal Diameter.
WT = Wall Thickness.
P = Solvent Socketing.
F = Fabricated.
Ft = Feet.
M = Meter
