| PIPES |
PIPE - Size : 16 to 110mm Single / Double / Triple Layer (3mtr. & 6mtr. ) |
 |

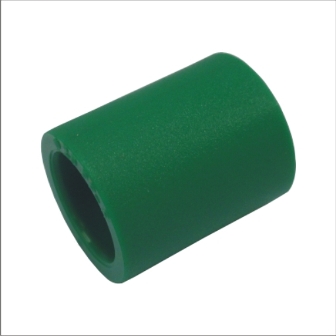

| Coupler |
20mm, 25mm, 32mm, 40mm,
50mm & 63mm. |
 |
| Tee |
20mm, 25mm, 32mm, 40mm, 50mm & 63mm. |
 |

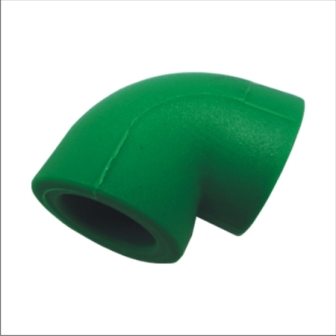

| Elbow 90° |
20mm, 25mm, 32mm, 40mm, 50mm & 63mm.
|
 |

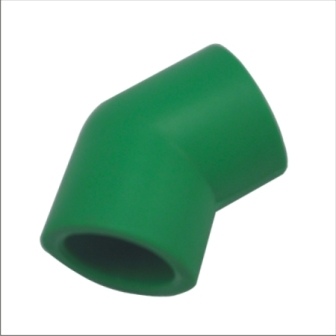

| Elbow 45° |
20mm, 25mm, 32mm, 40mm, 50mm & 63mm. |
 |

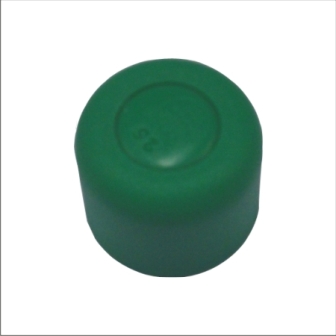

| End Cap |
20mm, 25mm, 32mm, 40mm, 50mm & 63mm. |
 |

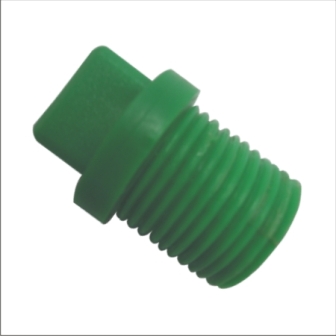

| End Plug |
20mm & 25 mm |
 |

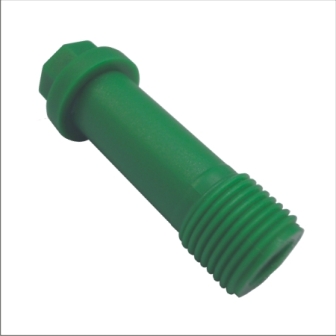

| Ext. Plug |
20mm & 25 mm |
 |

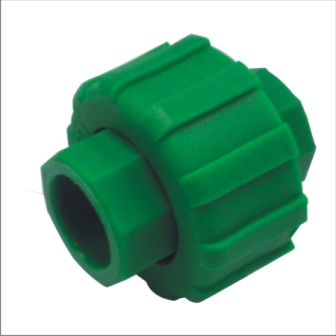

| Union |
20mm, 25mm, 32mm, 40mm & 50mm. |
 |

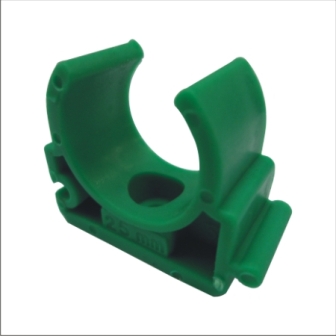

| Pipe Clamp |
20mm & 25mm |
 |

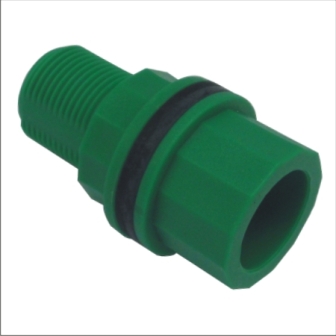

| Tank Connector |
20mm, 25mm, 32mm & 40mm |
 |

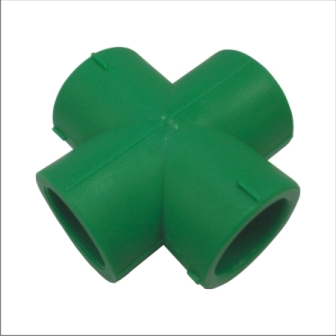

| Four Way Tee |
20mm, 25mm & 32mm |
 |

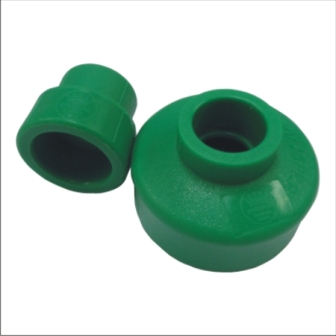

| Reducer |
25 x 20mm, 32 x 25mm, 32 x 20mm,
40 x 32mm,
40 x 25mm, 40 x 20mm,
50 x 20mm, 50 x 25mm,
50 x 32mm,
50 x 40mm, 63 x 50mm, 63 x 40mm,
63 x 32mm, 63 x 25mm, 63 x 20mm. |
 |

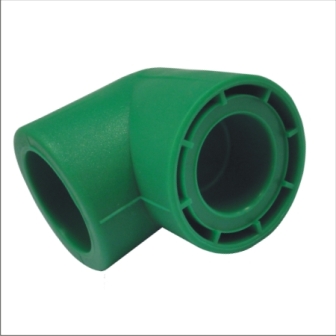

| Reducing Elbow |
32x20mm, 25x20mm & 32x25 mm |
 |

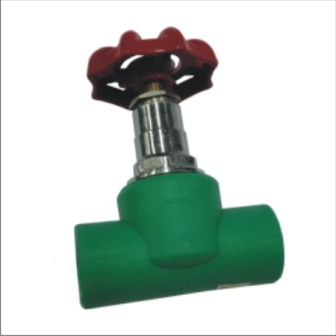

| Gate Valve |
20mm, 25mm, 32mm, 40mm,
50mm & 63mm |
 |

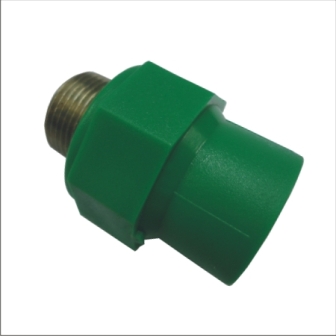

| Male Threaded Adopter |
20,25,32,40,50 & 63mm. |
 |

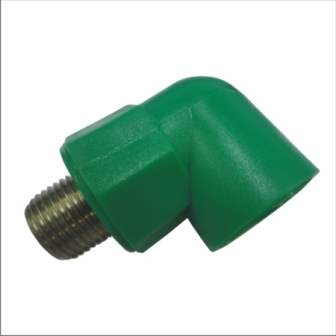

| Male Threaded Elbow |
20 x ½", 20 x ¾", 25 x ½", 25 x ¾",
32 x ¾", 32 x 1", 40 x 1¼"
|
 |

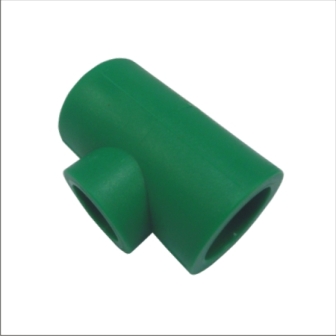

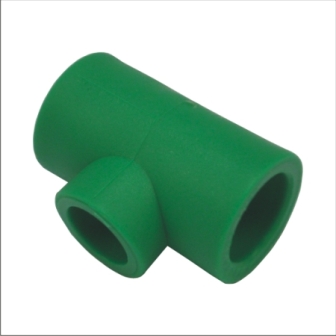

Tee Reducer Unequal Tee |
25x20x25mm, 32x20x32mm, 32x25x32mm, 40x20x40mm, 40x25x40mm, 40x32x40mm, 50x20x50mm, 50x25x50mm, 50x32x50mm, 50x40x50mm, 63x50x63mm. |
 |

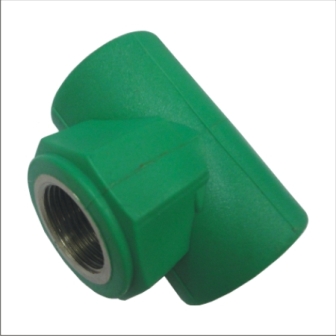

| Female Threaded Tee |
20x1/2", 20x 3/4", 25x1/2" 25x3/4", 32x3/4" 32x1", 40x11/4", 40x11/2". |
 |

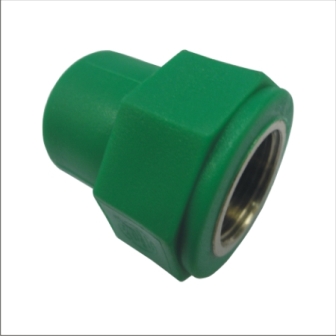

| Female Threaded Adopter |
20x1/2", 20 x 3/4", 25 x 1/2", 25 x 3/4", 32 x 3/4", 32x1", 30x11/4"x 40x11/2", 63 x2" |
 |

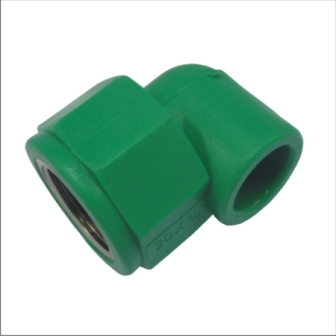

| Female Threaded Elbow |
20 x ½", 20 x ¾", 25 x ½", 25 x ¾",
32 x ½", 32 x ¾", 32 x 1", 40 x 1¼" |
 |

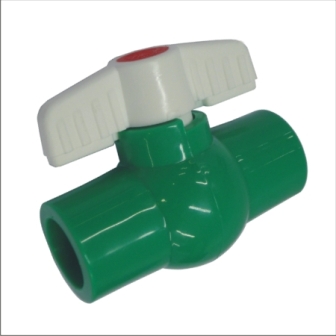

| Ball Valve |
20,25,32,40,50 & 63mm |
 |

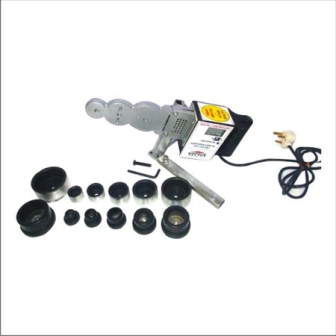

Welding Kit
|
20,25,32,40,50 & 63mm |
 |
|
|
|
PPR PIPE DIMENSION DETAILS
Nominal Size DN
|
Wall Thickness (Min.)
|
PN 10 (SDR 11) |
PN 16 (SDR 7.4) |
PN 20 (SDR 6) |
PN 25 (SDR 5) |
| 16 |
- |
2.20 |
2.70 |
3.30 |
20 |
1.90 |
2.80 |
3.40 |
4.10 |
| 25 |
2.30 |
3.50 |
4.20 |
5.10 |
| 32 |
2.90 |
4.40 |
5.40 |
6.50 |
| 40 |
3.70 |
5.50 |
6.70 |
8.10 |
| 50 |
4.60 |
6.90 |
8.30 |
10.10 |
| 63 |
5.80 |
8.60 |
10.50 |
12.70 |
| 75 |
6.80 |
10.30 |
12.50 |
15.10 |
| 90 |
8.20 |
12.30 |
15.00 |
18.10 |
| 110 |
10.00 |
15.10 |
18.30 |
22.10 |
|
|
|
|
|
|
