Products & Range of Products - Prince Agri Systems
Print Order Form
Prince Agri Pipes Systems
Prince Agri Fittings Ball Valve Systems
Prime Agri Non - ISI Standard Pipes
Product DetailsSpecification Dimensions

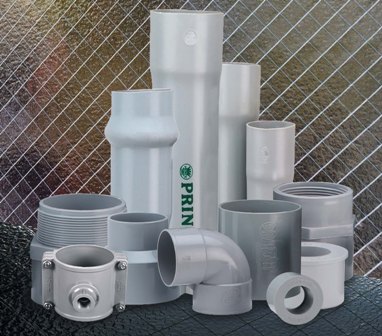

PRINCE AGRI PIPES, FITTINGS, BALL VALVE & ELASTOMERIC PIPE SYSTEMS (as per ISI 4985-2000).uPVC AGRI PRESSURE AND NON PRESSURE PIPES - uPVC pressure pipes are manufactured in accordance with IS -4985:2000, with a wide range from 20 mm to 400 mm suitable for Potable water supply, Lift irrigation systems, Drip irrigation & Sprinkler systems, Industrial Plumbing, Cable ducting, Ventilation Pipe Lines, Slurry Lines etc. These pipes are superior to conventional piping systems and offers number of advantages like light weight, easy and fast installation, excellent corrosion and chemical resistance, high flow rates, long life and economy.
2
Mechanical
Tensile Strength : 415 - 525 kg/cm2
Compression Strength : 550 - 910 kg/cm2
Flexural Strength : 680 - 1100 kg/cm2
Izod Impact Strength : 4-5 kg-cm / cm2
Shore Hardness : D65-85
Thermal
Coefficient of Linear Expansion : 0.08 mm/M0C
Vicat softening Point : gt;78deg; deg C
Max Operating Temperature : 60deg;deg C
Physical
Specific Gravity : 1.40 - 1.45
Water Absorption : lt; 4 mg/cm3

Hazen - william's Flow Co-efficient Comparison
Pipe Material PVC A.C. G.I. C.I.
Flow Coeeficient 150 130 110 100

Standards, Quality Control & Testing

The manufacturing and testing is done for

1) Pipes - in accordance with IS : 4985 - 2000

2) Threads - (a) 1/2quot; and 3/4quot; - 14 TPI (B) 1quot; and Above 11 TPI.

All the above pipes, except Non-pressure pipes are tested for potable water supplies in accordance with their relevant standards and as per the test methods give in IS : 12235.

The Manufacturing and testing is done for Fittings - in accordance with IS : 7834-1987; for ISI marked fittings.

PRODUCT RANGE :
a) Solvent Cement jointing Pipe have one end self socketed and the other end plain, which fits snugly without the use of couplers. The strong solvent cement joint is permanent and trouble free. The pipes are available from 20 mm to 400 mm in pressure rating of 2.5 kgf/Cm2, 3 kgf/Cm2, 6kgf/Cm2, 8 kgf/Cm2, 10 kgf/Cm2 & 12.5 kgf/Cm2.

b) Elastomeric Sealing Ring Pipe have one end self socketed suitable for Ring joint and other end plain. Some of the advantage of these pipes are, can be jointed at any weather condition, faster accommodate expansion and contraction and also resistance to soil movement due to earthquake effect. The pipes are available from 63mm to 315mm with pressure rating of 2.5 kgf/Cm2, 4 kgf/Cm2, 6 kgf/Cm2 & 8 kgf/Cm2 .

c) Prime Non ISI Pipes : These are economical pipes and available from 20mm to 400mm in pressure rating 4 kgf/Cm2, 6 kgf/Cm2, 8 kgf/Cm2& 10 kgf/Cm2 .

The Agri (Solvent Cement Joint) pipes have one end self-socketed and the other end plain, which fits snugly without the use of couplers. The strong solvent cement joint is permanent and trouble-free.
