Products » Range of Products » Prince Tube Well Systems
   Product Details      Dimension

PRINCE Tube Well SYSTEMS

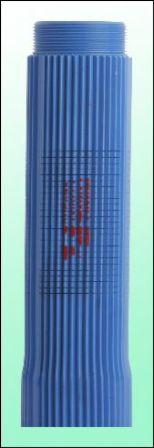

PRINCE Ribbed Screen Pipes - Pipes having V shape ribs on outer surface with fine slots to prevent small particles in bore well. These pipes have special specification & have been produced from special PVC compounding formulation.

Ribbed Screen Pipes Casing Pipe Blue Threaded

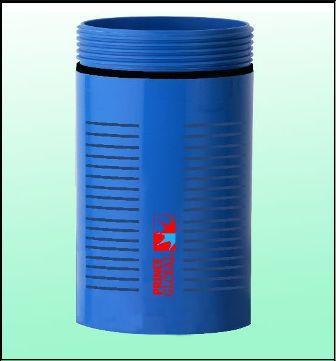

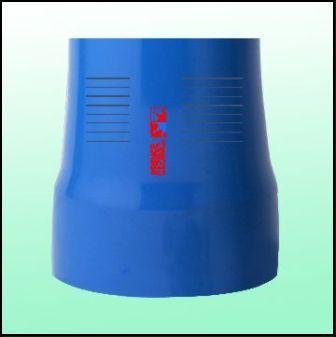

Casing Screen Pipe Thrd & Plain
 Column Pipe Threaded Column Pipe Plain
1

Dimensions of Medium Well Ribbed Screen (RMS) Pipes as per IS: 12818 - 2010

Nominal Diameter (DN)  Mean Outer Diameter of Pipe  Outer Diameter of Pipe at Any Point Mean Outer Diameter Over Connection Wall thickness
(Under Ribs) mm
Inch mm Min
Max
 Min Max Max Min Max
11/4 35 46.0
46.2
 45.9 46.3 50.0 3.5 4.0
1 1/2 40 52.0
52.2
 51.9 52.3 56.9 3.5 4.0
2 50 64.0
64.2
 63.9 64.3 69.0 4.0 4.6
3 80 92.0
92.3
 91.8 92.4 98.0 4.0 4.6
4 100 117.0
117.3
 116.8 117.4 124.0 5.0 5.7
41/2 115 129.0
129.3
 128.8 129.4 136.0 5.0 5.7
5 125 144.0
144.4
 143.7 144.5 154.0 6.5 7.3
6 150 169.0
169.4
 168.6 169.6 182.0 7.5 8.5
7 175 204.0
204.5
 203.6 204.6 219.0 8.8 9.8
8
200
229.0
229.5
 229.8 229.8 247.0 10.0 11.2
10
250
284.0
284.5
 284.8 284.8 302.0 12.5 14.0

Dimensions of Deep Well Ribbed Screen (RDS) Pipes as per IS : 12818 - 2010

Nominal outside Diameter (DN) Mean outside
Diameter of Pipe		 Outside Diameter of Pipe
at any point		 Mean Outer Diameter over connection Wall Thickness
Inch mm Min Max Min Max Max Min Max
4 100 117.0 117.3 116.8 117.4 129.0 7.0 7.9
41/2 115 129.0 129.3 128.9 129.4 141.0 7.5 8.5
5 125 144.0 144.4 143.7 144.5 156.0 8.0 9.0
6 150 169.0 169.4 168.6 169.6 184.0 9.5 10.7
7 175 204.0 204.5 203.6 204.6 221.0 11.8 13.6
8 200 229.0 229.5 228.5 229.8 251.0 13.0 14.8
10 250 284.0 284.5 283.4 284.8 309.0 16.0 17.6

Dimensions of Plain Medium Well Screen (PMS) Pipes(All Dimensions in mm)

Nominal Outside Diameter
(DN)		 Mean Outer Diameter
of Pipe		 Outer Diameter
of Pipe at Any Point		 Mean Outer Diameter
Over Connection 		Wall thickness
Inch mm Min Max Min Max Max Min Max
8 200 225.0 225.5 224.5 225.8 243.0 10.0 11.2
10 250 280.0 280.5 279.4 280.8 298.0 12.5 14.0

Dimensions of Plain Deep Well Screen (PDS) Pipes( All Dimensions in mm)

Nominal Outside Diameter
(DN)		 Mean Outer Diameter
Outer Diameter
of Pipe at Any Point		 Mean Outer Diameter
Over Connection 		Wall thickness
Inch mm Min Max Min Max Max Min Max
8 200 225.0 225.5 224.5 225.8 247.0 13.0 14.8
10 250 280.0 280.5 279.4 280.8 304.0 16.0 17.6

Dimensions of Medium Well (CM), Shallow Well (CS) Deep Well (CD) Casing Pipes as per IS: 12818 - 2010

Nominal Diameter (DN) Mean Outer Diameter of Pipe Mean Outer Diameter Over Connection (Max) Wall Thickness
(mm ) CM		 Wall Thickness
(mm) CS		 Wall thickness (mm) CD
Inch mm  Min
Max
 CM CS CD Min Max Min Max Min Max
11/4 35 42.0
42.2
46.0 - - 3.5 4.0 - - - -
1 1/2 40 48.0
48.2
52.0 - - 3.5 4.0 - - - -
2 50 60.0
60.2
65.0 - - 4.0 4.6 - - - -
3 80 88.0
88.3
 94.0 - - 4.0 4.6 - - - -
4 100 113.0
113.3
120.0 - 125.0 5.0 5.7 - - 7.0 7.9
41/2 115 125.0
125.3
132.0 - 137.0 5.0 5.7 - - 7.5 8.5
5 125 140.0
140.4
 150.0 - 152.0 6.5 7.3 - - 8.0 9.0
6 150 165.0
165.4
 178.0 174.0 180.0 7.5 8.5 5.7 6.5 9.5 10.7
7 175 200.0
200.5
215.0 211.0 217.0 8.8 9.8 7.0 7.8 11.8 13.6
8
200
225.0
225.5
 243.0 238.0 247.0 10.0 11.2 7.6 8.8 13.0 14.8
10
250
280.0
280.5
298.0 292.0 304.0 12.5 14.0 9.6 11.0 16.0 17.6

Note: Pipes are manufactured in accordance with IS:12818-2010 by UPVC special grade raw material as per recommendation in Blue colour.

  • All dimensions in millimeters
  • Pipes comply with IS 12818-2010
  • Threads DN 40 to 80 mm as per IS : 554
  • DN 100 to 400 mm trapezoidal threads as per IS : 12818-2010
  • Sealing rings as per IS : 12818-2010 (Material - EPDM)
  • Standard Length - 3 mtr.
  • Other Sizes, Thickness Length canbe supplied, if desired.

*Prince column pipe is specially designed for bore well to risen water by submersible pump. Additional superior design and
development features characteristics of column pipes are high impact, high tensile and high strength. Square threads form on pipe which
suits to take entire load of installed capacity of column pipe.
*Compound formulated is specially UPVC and proved inherent properties over replacement of Galvanized steel pipe.
*Column pipes are very rigid and, longer life can consider up to 50 yrs even though with holding self load along with submersible pump.
Refer Table for Pipe Selection
Sr. No. SIZE GRADE Pressure Kg/cm2 Type Outer dia. of Pipe End Wall Thickness Barrel (Middle) Thickness Depth Recommend Load Carrying Capacity
mm Inch. Min Max Min Max Min Max (Mtrs) (Kgs)
1 25 1 V4 15 Bell/Coupler 33.0 33.3 3.5 3.7 1.8 2.0 150 730
Medium 21 Bell/Coupler 33.0 33.3 3.8 4.2 2.5 2.8 210 760
Standard 30 Bell/Coupler 33.0 33.3 5.2 5.5 4.0 4.3 300 1250
2 32 1¼ V4 15 Bell/Coupler 42.0 42.3 3.8 4.2 2.5 2.8 150 1000
Medium 21 Bell/Coupler 42.0 42.3 4.7 5.0 2.9 3.2 210 1250
Standard 25 Bell/Coupler 42.0 42.3 6.2 6.5 4.1 4.6 250 1400
Heavy 35 Coupler 42.0 42.3 6.4 6.8 5.2 5.6 350 1600
3 40 1½ V4 15 Coupler 48.0 48.3 4.5 4.8 2.9 3.2 150 1150
Medium; 21 Coupler 48.0 48.3 5.3 5.6 3.4 3.8 210 1350
Standard 26 Coupler 48.0 48.3 6.5 6.9 4.1 4.5 260 1700
Heavy 35 Coupler 48.0 48.3 8.5 8.5 6.0 6.4 350 2000
4 50 2 Medium 17 Coupler 60.0 60.3 5.1 5.5 2.6 3.0 170 1500
Standard 20 Coupler 60.0 60.3 6.2 6.5 4.0 4.3 200 2100
Heavy 27 Coupler 60.0 60.3 7.9 8.5 5.5 5.9 270 2750
Super Heavy 35 Coupler 60.0 60.3 9.0 9.5 6.4 6.8 350 3400
5 65 2½ Medium 10 Coupler 75.0 75.3 5.2 5.5 2.7 3.0 100 1900
Standard 16 Coupler 75.0 75.3 6.5 6.8 4.1 4.4 160 2700
Heavy 26 Coupler 75.0 75.3 8.0 8.4 6.3 6.7 260 4100
Super Heavy 35 Coupler 75.0 75.3 10.8 11.2 8.2 8.6 350 4700
6 80 3 Medium 11 Coupler 88.0 88.3 5.8 6.3 3.3 3.7 110 2700
Standard 17 Coupler 88.0 88.3 7.4 7.9 5.1 5.6 170 3800
Heavy 26 Coupler 88.0 88.3 9.7 10.3 7.3 7.9 260 5600
Super Heavy 35 Coupler 88.0 88.3 12.5 12.9 9.6 10.0 350 6500
7 100 4 Medium 10 Coupler 113.0 113.4 6.4 6.8 3.9 4.4 100 4000
Standard 15 Coupler 113.0 113.4 8.1 8.5 5.6 6.0 150 5700
Heavy 26 Coupler 113.0 113.4 11.9 12.5 9.3 9.9 260 9500
Super Heavy 35 Coupler 113.0 113.4 15.0 15.5 12.5 12.9 350 10500
Column pipe installation procedure in bore well
1. Select proper size of pump and class of column pipe to install in bore well.
2. Before start to install check working good condition of pump to avoid remove from bore well.
3. Metal connector to assemble with submersible pump with the help of pipe wrench.
4. Before start to insert the pump in bore well ensures pump guard is fixed safely and tighten properly.
5. Column pipe to jointing with adapter ensure all sealing ring provided on pipe and properly to be clean with cloth and water if needed.
6. Adaptor to hold by hand or clamp and take assembly of other pipe.
7. Ensure tightening of pipe in such a way that sealing ring to be tightening half in coupler and half is to be visible.
8. In such a way complete the column pipe installation procedure.
