| Soil Pipe - BS 4514 |
Nominal Size mm/Inch |
Outside Diameter ( D) mm |
Wall Thickness ( t ) mm |
| Minimum |
Maximum |
Minimum |
Maximum |
| 82(3") |
82.4 |
82.8 |
3.2 |
3.8 |
| 110(4") |
110.0 |
110.4 |
3.2 |
3.8 |
| 160(6") |
160.0 |
160.6 |
3.2 |
3.8 |
| Waste Pipe - BS 525 |
| Nominal Size mm/ Inch |
Outside Diameter ( D) mm |
Wall Thickness ( t ) mm |
| Minimum |
Maximum |
Minimum |
Maximum |
| 32 ( 1 1/4") |
36.15 |
36.45 |
1.8 |
2.2 |
| 40 ( 1 ½" ) |
42.75 |
43.05 |
1.9 |
2.3 |
| 50 ( 2" ) |
55.75 |
56.05 |
2.0 |
2.4 |
| Waste Pipe - Cold Water |
| Nominal Size mm/Inch |
Outside Diameter ( D) mm |
Wall Thickness ( t ) mm |
| Minimum |
Maximum |
Minimum |
Maximum |
| 32 ( 1 1/4") |
36.15 |
36.45 |
1.8 |
2.2 |
| 40 ( 1 ½" ) |
42.75 |
43.05 |
2.3 |
2.8 |
| 50 ( 2" ) |
55.75 |
56.05 |
2.4 |
2.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note : 1. Pipe are offered in Terrain Grey ( TG ), Off White ( OW ) & Light Grey ( LG ) colour in standard length of 3.0 / 4.0 meter.

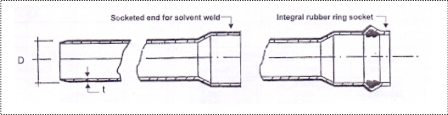

Note : 2. Pipe can be offered with both ends plain or with one end socketed for solvent weld jointing. Note : 3. Non standard wall-thckness, length & colour can be offered, if desired. |
|
| uPVC pipes specification as per British Standard BS 4660 : |
|
| BS 4660 |
|
| Nominal Size mm ( Inch ) |
Outside Diameter ( D) mm |
Wall Thickness ( t ) mm |
|
| Minimum |
Maximum |
Minimum |
Maximum |
|
| 110(4") |
110.0 |
110.4 |
3.2 |
3.8 |
|
| 160(6") |
160.0 |
160.6 |
4.1 |
4.8 |
|
| BS 5481 |
|
| Nominal Size mm ( Inch ) |
Outside Diameter ( D) mm |
Wall Thickness ( t ) mm |
|
| Minimum |
Maximum |
Minimum |
Maximum |
|
| 200 (8") |
200.0 |
200.6 |
4.9 |
|
| 5.6 |
|
| 250 (10") |
250.0 |
250.7 |
6.1 |
7.0 |
|
| 315 (12") |
315.0 |
315.9 |
7.7 |
8.7 |
|
| 400 (16") |
400.0 |
401.0 |
9.8 |
11.0 |
|
Note : 1. Pipe are offered in Golden Brown colour in standard length of 5.8 / 6.0 meter.
Note : 2. Pipe can be offered in with both ends plain or with one end socketed for solvent weld. Note : 3. wall-thckness, length & colour can be offered as per Customer requirement |
|
|
|
|
|
|
|
|
|
|
uPVC Pipe Specification as per EN 1329 - 1 : 2000
| 1) Metric Series |
OD ( mm ) |
Application area 'B' Wall thickness ( mm ) |
Application area 'BD' Wall thickness ( mm ) |
| Sr. NO. |
Nominal Size in mm |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
| 1 |
32.0 |
32.0 |
32.2 |
3.0 |
3.5 |
***** |
***** |
| 2 |
40.0 |
40.0 |
40.2 |
3.0 |
3.5 |
***** |
***** |
| 3 |
50.0 |
50.0 |
50.2 |
3.0 |
3.5 |
***** |
***** |
| 4 |
63.0 |
63.0 |
63.2 |
3.0 |
3.5 |
***** |
***** |
| 5 |
75.0 |
75.0 |
75.3 |
3.0 |
3.5 |
3.0 |
3.5 |
| 6 |
80.0 |
80.0 |
80.3 |
3.0 |
3.5 |
3.0 |
3.5 |
| 7 |
82.0 |
82.0 |
82.3 |
3.0 |
3.5 |
3.0 |
3.5 |
| 8 |
90.0 |
90.0 |
90.3 |
3.0 |
3.5 |
3.0 |
3.5 |
| 9 |
100.0 |
100.0 |
100.3 |
3.0 |
3.5 |
3.0 |
3.5 |
| 10 |
110.0 |
110.0 |
110.3 |
3.2 |
3.8 |
3.2 |
3.8 |
| 11 |
125.0 |
125.0 |
125.3 |
3.2 |
3.8 |
3.2 |
3.8 |
| 12 |
140.0 |
140.0 |
140.4 |
3.2 |
3.8 |
3.5 |
4.1 |
| 13 |
160.0 |
160.0 |
160.4 |
3.2 |
3.8 |
4.0 |
4.6 |
| 14 |
180.0 |
180.0 |
180.4 |
3.6 |
4.2 |
4.4 |
5.0 |
| 15 |
200.0 |
200.0 |
200.5 |
3.9 |
4.5 |
4.9 |
5.6 |
| 16 |
250.0 |
250.0 |
250.5 |
4.9 |
5.6 |
6.20 |
7.1 |
| 17 |
315.0 |
315.0 |
315.6 |
6.2 |
7.1 |
7.70 |
8.7 |
| Note - |
| "B" : Application Area Code for Components intended for use above Ground inside the Building or for components outside Building fixed on the wall.
"D" : Application Area for the area under and within 1 M from the building where the pipes and fittings are buried in grounds and are connected to the underground drainage and sewerage systems.
"BD" : Applcation area for components intended for use for both code "B" & Code "D" application area.
|
| 2) Inch series Application area 'B' |
| Sr. NO. |
Nominal Size in mm |
OD ( mm ) |
Wall Thickness ( mm ) |
| Min. |
Max. |
Min. |
Max. |
| 1 |
36 |
36.2 |
36.5 |
3.0 |
3.5 |
| 2 |
43 |
42.8 |
43.1 |
3.0 |
3.5 |
| 3 |
56 |
55.8 |
56.1 |
3.0 |
3.5 |
| uPVC Pipes Specification AS per EN - 1401 : 2009 |
| Sr. NO. |
Nominal Size in mm |
Dia in mm |
SN - 2, SDR 51 |
SN - 4, SDR 41 |
SN - 8, SDR 34 |
| Wall thickness |
Wall thickness |
Wall thickness |
| Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
Min. |
Max. |
| 1 |
110 |
110.00 |
110.30 |
***** |
***** |
3.20 |
3.80 |
3.20 |
3.80 |
| 2 |
125 |
125.00 |
125.30 |
***** |
***** |
3.20 |
3.80 |
3.70 |
4.30 |
| 3 |
160 |
160.00 |
160.40 |
3.20 |
3.80 |
4.00 |
4.60 |
4.70 |
5.40 |
| 4 |
200 |
200.00 |
200.50 |
3.90 |
4.50 |
4.90 |
5.60 |
5.90 |
6.70 |
| 5 |
250 |
250.00 |
250.50 |
4.90 |
5.60 |
6.20 |
7.10 |
7.30 |
8.30 |
| 6 |
315 |
315.00 |
315.60 |
6.20 |
7.10 |
7.70 |
8.70 |
9.20 |
10.40 |
| 7 |
355 |
355.00 |
355.70 |
7.00 |
7.90 |
8.70 |
9.80 |
10.40 |
11.70 |
| 8 |
400 |
400.00 |
400.70 |
7.90 |
8.90 |
9.80 |
11.00 |
11.70 |
13.10 |
|
|
| |
|
Note : SDR 51 is applicable area code "U" CODE |
|
|
| |
|
Pipes will be supplied in Orange-Brown Colour & Dirty Grey. |
|
|
|
|
|
|
