Products » Range of Products ; Prince Solvent SWR Systems
Product Details Specification

Prince Solvent SWR Systems have several advantages over conventional C. I. & A. C. Systems.

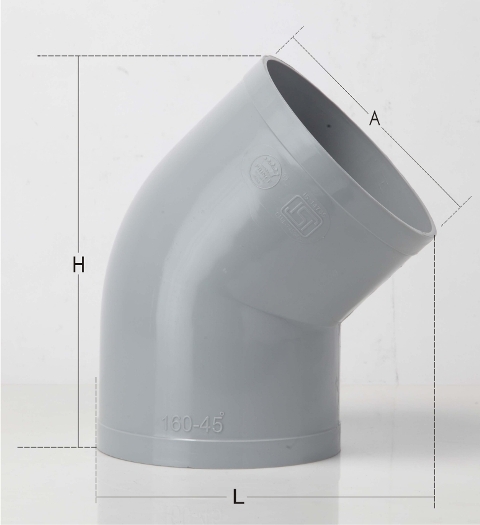

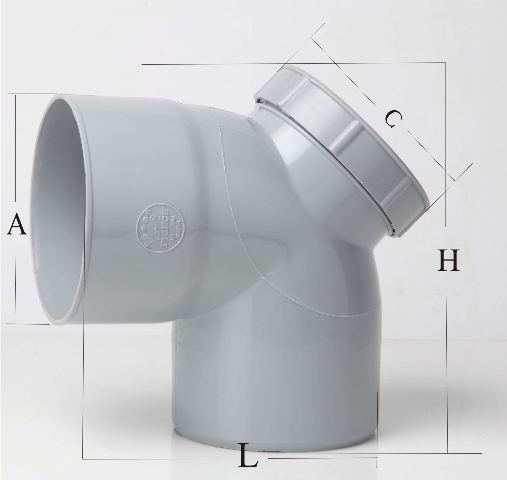

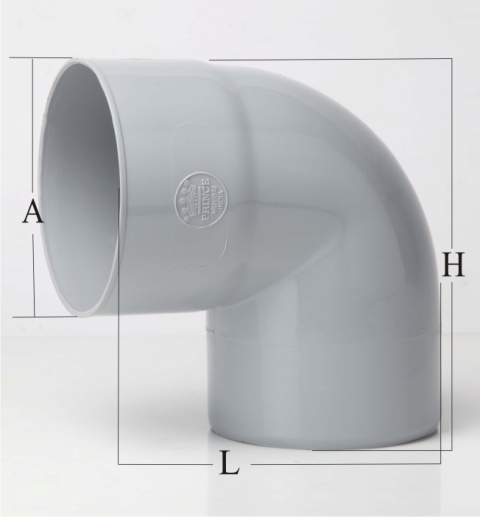

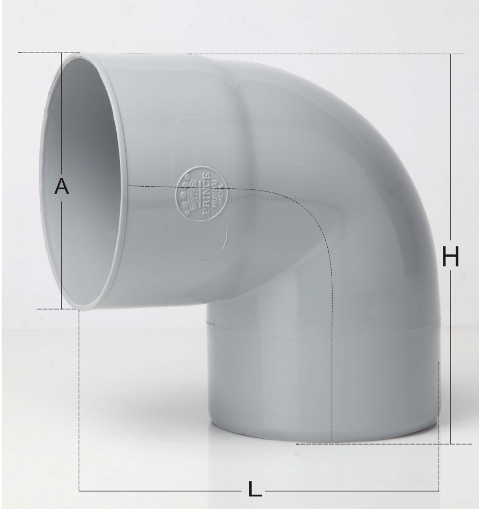

Bend 87.5° Bend 87.5° with door Bend 45°
ND WT A H L
40 2.8 55 95 86
50 1.9 65 104 104
63P 2.5 70 109 118
75P 2.6 81 130 126
110P 2.7 117 176 180
ND WT A H L C
50 1.9 65 110 118 44
60PF 2.5 70 111 144 70
75PF 2.6 82 131 152 81
110PF 2.8 117 176 202 108
ND WT A H L
40P 2.6 48 77 70
50P 3.0 59 93 84
63P 2.7 70 125 105
75P 2.7 82 142 116
110P 2.6 116 189 161
160P 3.5 170 275 237

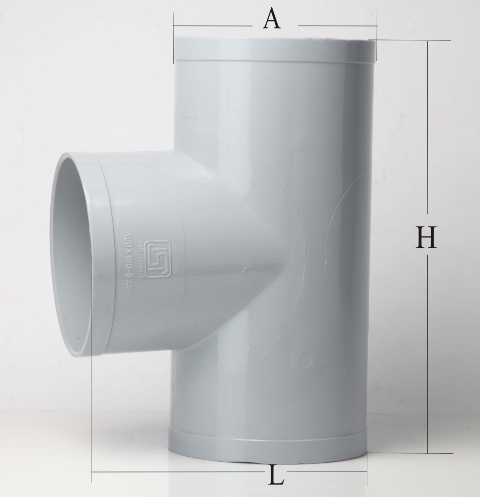

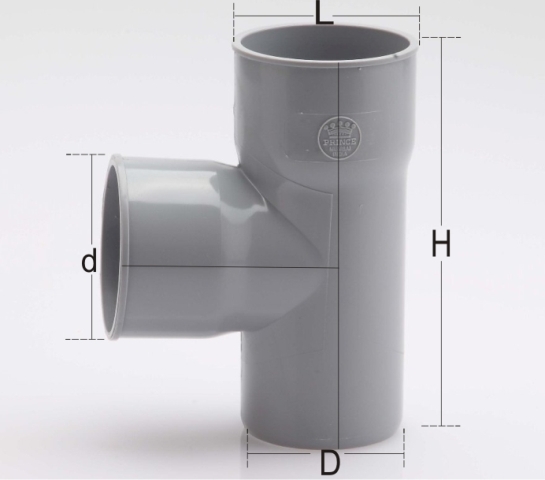

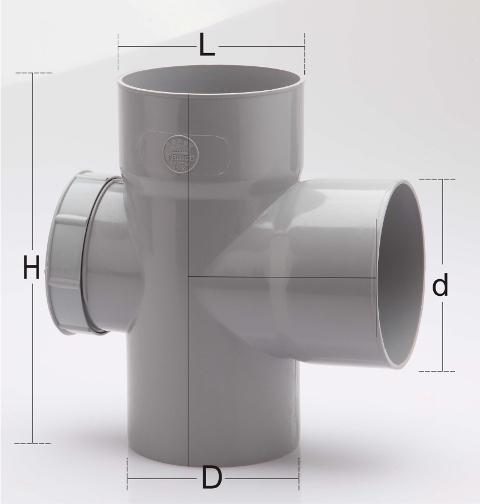

Single Tee Reducer Single Tee with door
ND WT A H L
40P 2.5 48 94 73
50P 2.8 59 114 89
63P 2.5 71 163 121
75P 2.6 81 174 131
110P 3.0 117 235 185
160P 3.4 170 346 254
ND WT D d L
75X50P 2.7 75 50 91
160X110P 3.3 168 117 190
ND WT A H L C
63PF 2.5 71 163 147 70
75PF 2.7 81 174 165 81
110PF 3.1 117 234 223 108
160PF 3.5 168 345 300 108
2
1

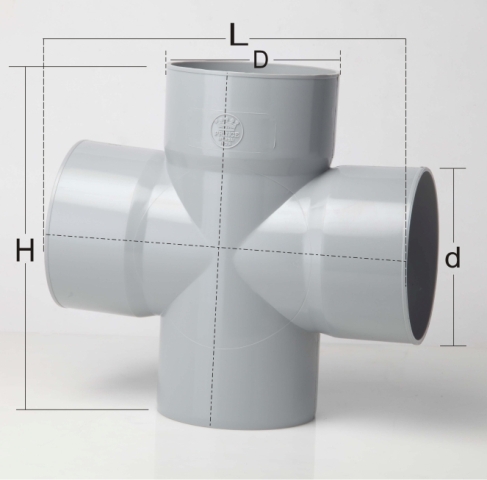

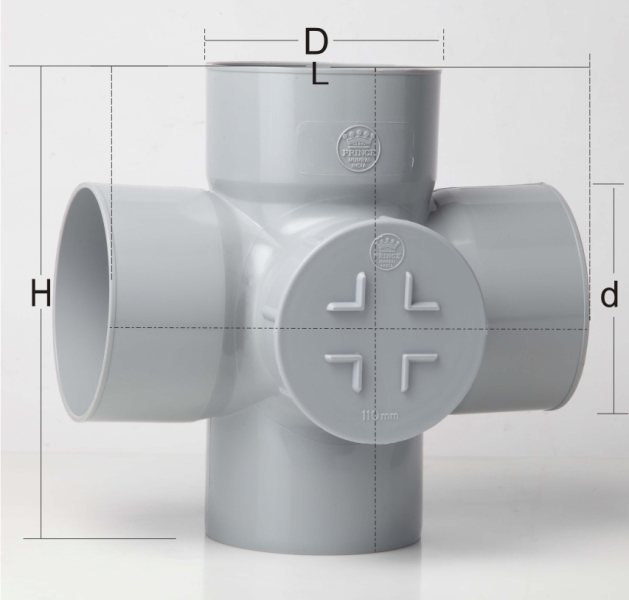

Double Tee with Door Double Tee Reducing Single Tee
Nd WT A H L C
75PF 2.5 81 174 173 81
110PF 3.0 117 236 245 108
160PF 3.4 168 346 345 108
Nd WT A H L
75PF 2.5 81 174 173
110PF 3.0 117 236 245
160PF 3.4 168 346 340
ND WT A H L
160X110 2.71 169 345 240

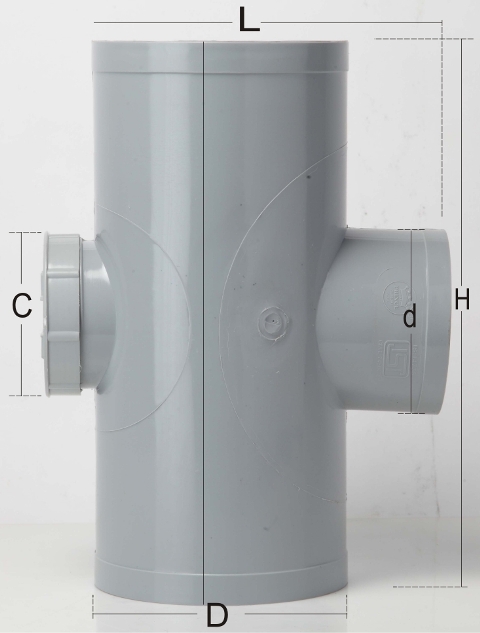

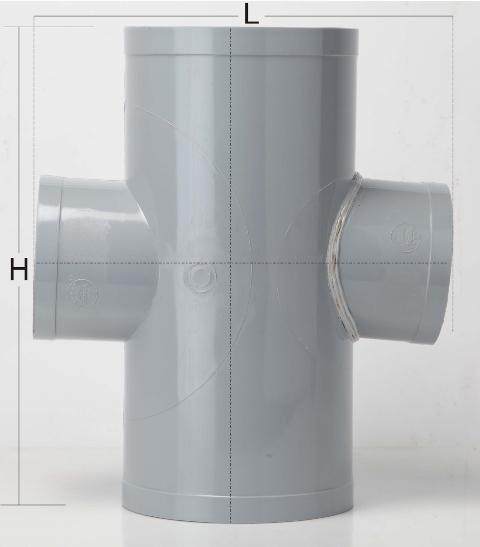

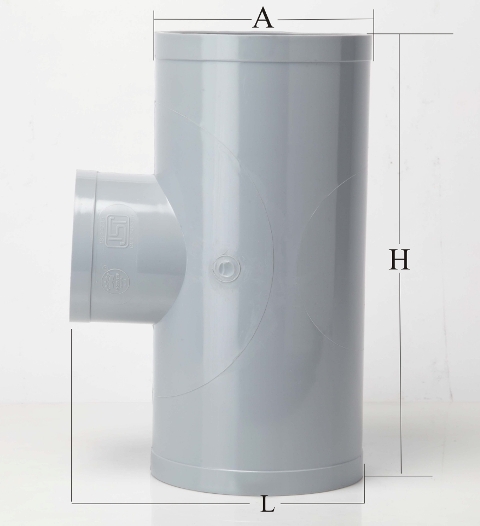

Reducing Tee with Door Reducing Double Tee Reducing Double Tee with Door
Ndxd WT H L C
160X110PF 3.5 346 273 108
Ndxd WT H L
160X110PF 3.4 346 297
Ndxd WT H L C
160X110PF 3.3 346 295 108

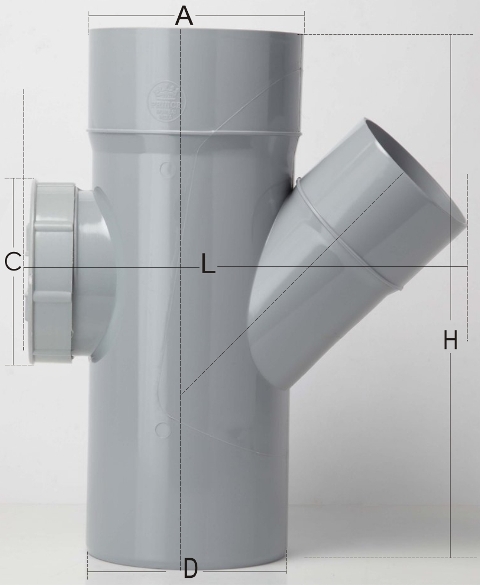

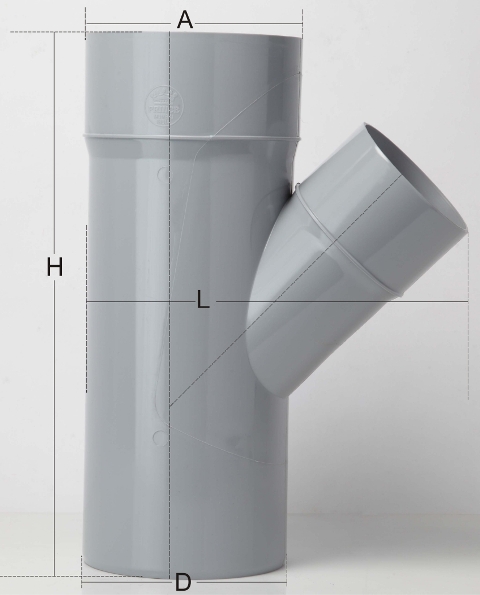

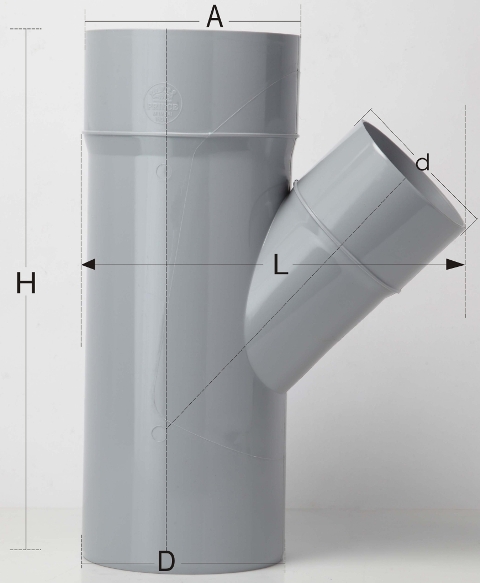

Single 'Y' Single 'Y' with Door Reducing 'Y'
ND WT A H L
63PF 2.5 70 175 147
75PF 2.6 82 200 164
110PF 2.7 114 278 241
160PF 3.8 170 425 355
ND WT A H L C
63PF 2.5 70 175 178 70
75PF 2.6 82 200 197 81
110PF 2.7 116 279 265 105
160PF 3.6 170 425 390 108
Ndxd WT D H L A
160X110PF 3.5 160 425 320 170

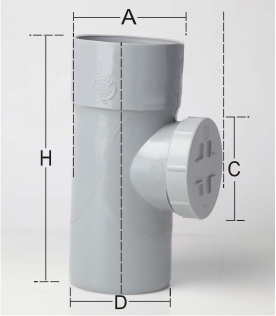

Reducing 'Y' with Door Cleansing Pipe
Ndxd WT A H L C
160X110PF 3.5 160 420 365 108
Nd WT A H L C
63 2.5 71 163 97 70
75 2.6 81 174 117 81
110 3.7 117 235 149 108
160PF 3.3 168 360 211 108

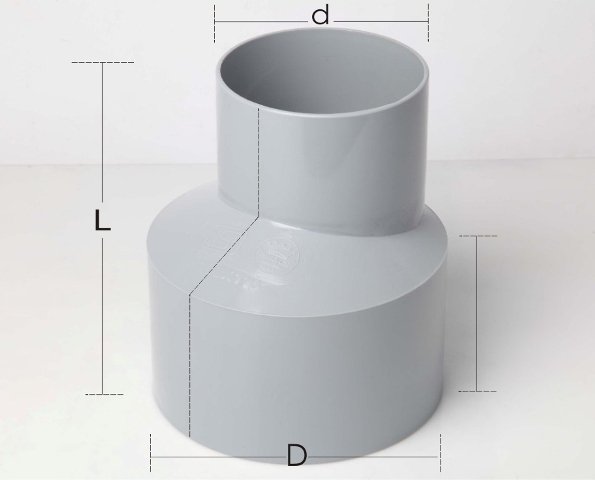

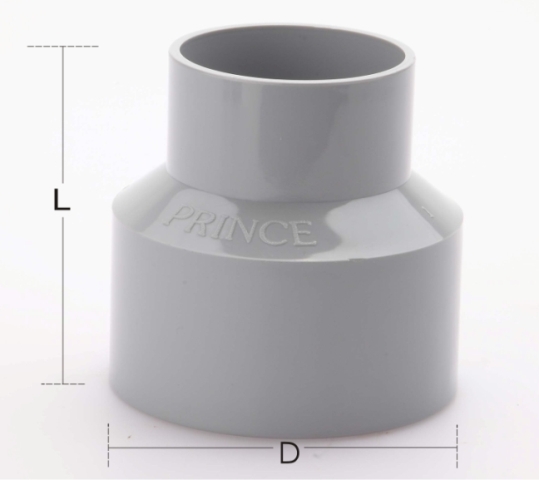

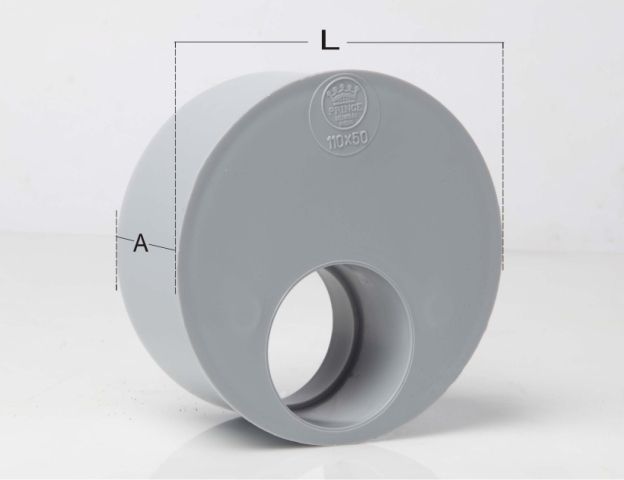

Internal Reducer Reducing Bush Double
ND WT D d L
75X50P 2.7 75 50 91
ND WT A L
110X50 2.8 49 115
110X75 3.6 49 115
ND WT A H L
160PF 3.6 171 425 530

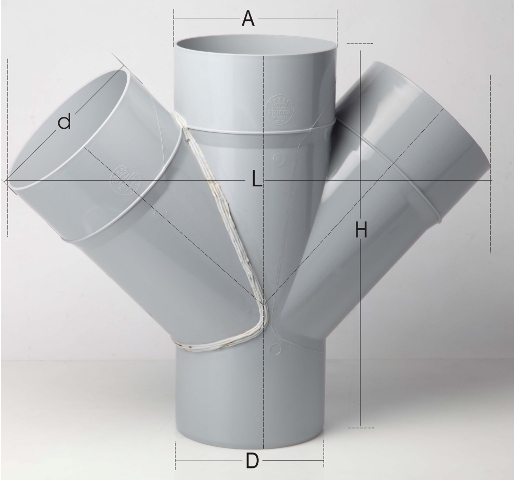

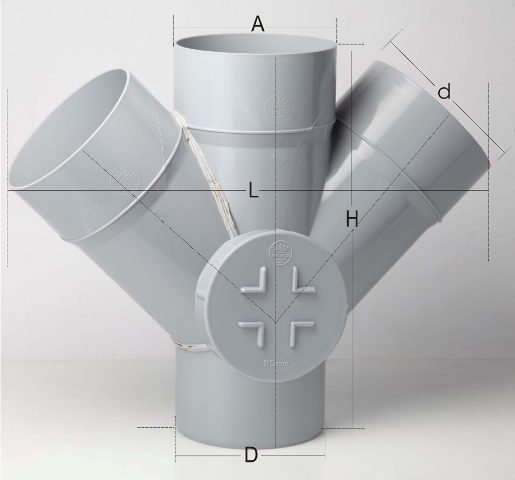

Double Door "Y" Coupler Reducing Double Y with Door
ND WT A H L C
160 3.6 171 425 540 108
ND WT A H
160 3.5 167 252
Ndxd WT A H L
160X110PF 3.8 170 423 465
PRIDE LIGHT
Bend 87.5° 160mm Bend 87.5° with Door Single Tee
ND WT A H L
40 1.65 45 72 72
40H 2.6 48 72 75
50 1.78 55 88 87
160 2.75 169 264 268
160H 3.5 170 263 261
ND WT A H L C
160 2.75 169 275 286 108
160PF 3.3 170 262 270 108
ND WT A H L
40 1.64 45 94 72
50 1.72 55 114 90
160 2.74 169 345 270

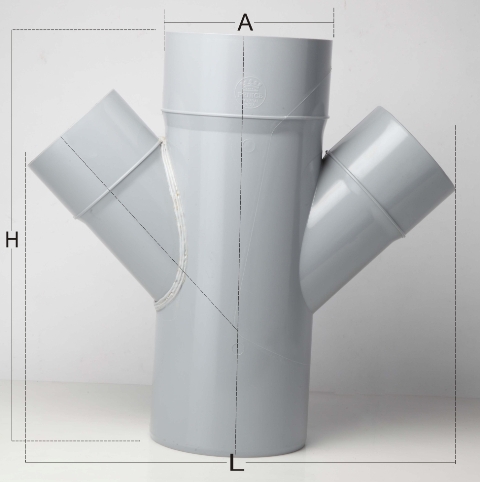

Single Tee with Door Reducing Tee Reducing Double Y
ND WT A H L C
160 2.74 160 345 294 108
ND WT A H L
160X110 2.71 169 345 240
Ndxd WT A H L
160X110PF 3.6 170 425 322
All dimensions are in millimetres.

ND = Nominal Diameter.
WT = Wall Thickness.
P = Solvent Socketing.
F = Fabricated.
Ft = Feet.
M = Meter
